ER High-Speed Mini Nuts

ER High-Speed Mini Nuts

ER High-Speed Mini Nuts
SKU ERHSMiniNuts
Weight 6.00 lbs
Our price: $68.40
Quantity
Use ER High-Speed mini nuts for applications where speed exceeds 10,000 RPMs.  They are balanced to G2.5 for 10,000 RPMs.  These nuts are used on collet holders and multi-spindle heads where center or shoulder distances are important.
Part

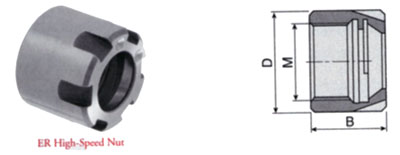

Number		 Description D B M Wrench Maximum Torque
SE33108 ER 8 HS Mini Nut 12mm 11mm M10 x 0.75 04620 7 ft/lbs
SE33111 ER 11 HS Mini Nut 16mm 12mm M13 x 0.75 04621 14 ft/lbs
SE33116 ER 16 HS Mini Nut 22mm 18mm M19 x 1.0 04622 22 ft/lbs
SE33120 ER 20 HS Mini Nut 28mm 19.5mm M24 x 1.0 04623 25 ft/lbs
SE33125 ER 25 HS Mini Nut 35mm 21mm M30 x 1.0 04624 29 ft/lbs

SE33125-L

 ER 25 HS L-Hand Nut 35mm 21mm M30 x 1.0 04624 29 ft/lbs
